Efficient Cutting for Precision Sheet Metal
Home 2D Laser Cutting Machine HF-G-7X

High-Speed Processing.
Consistent Performance.

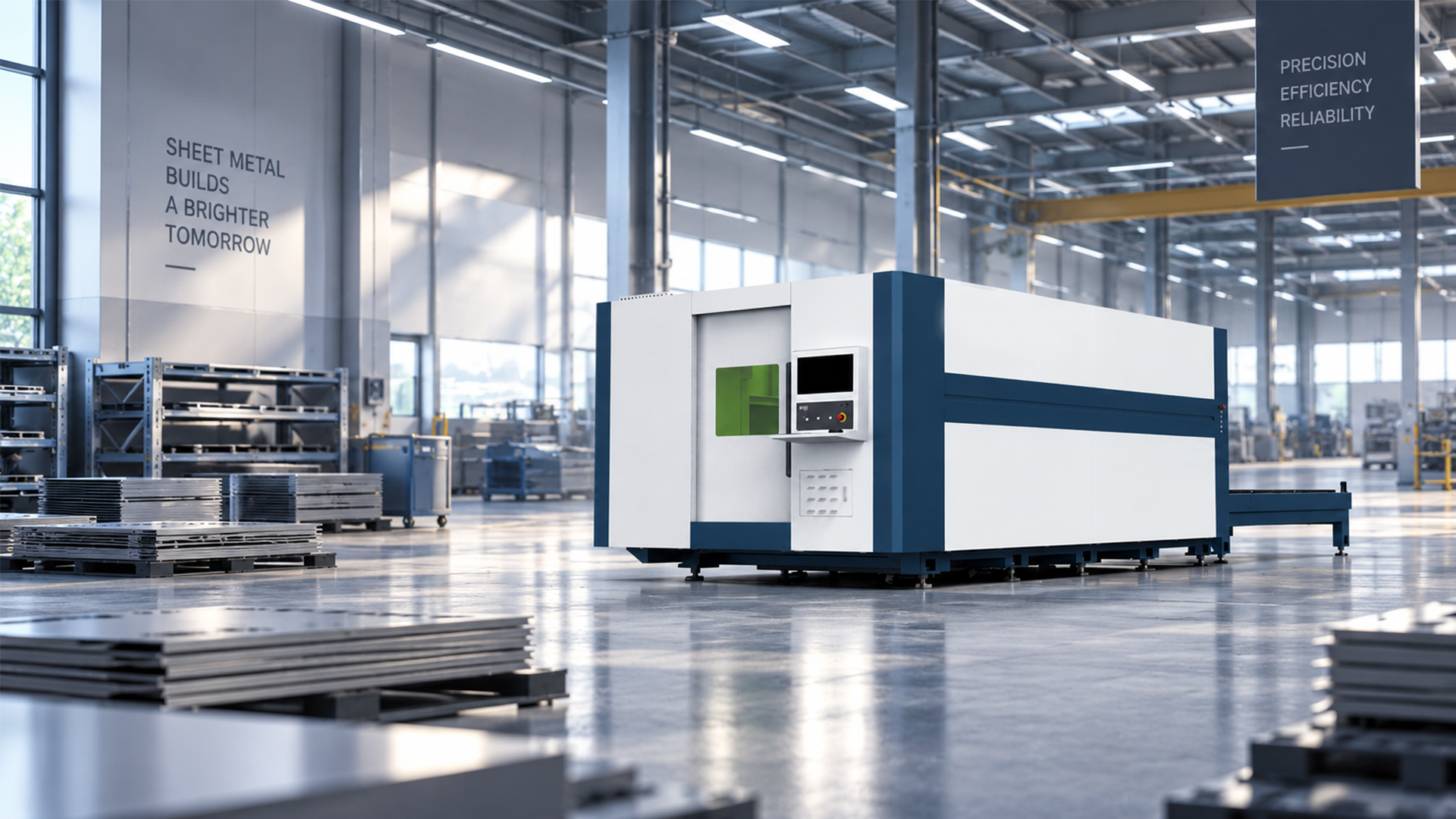

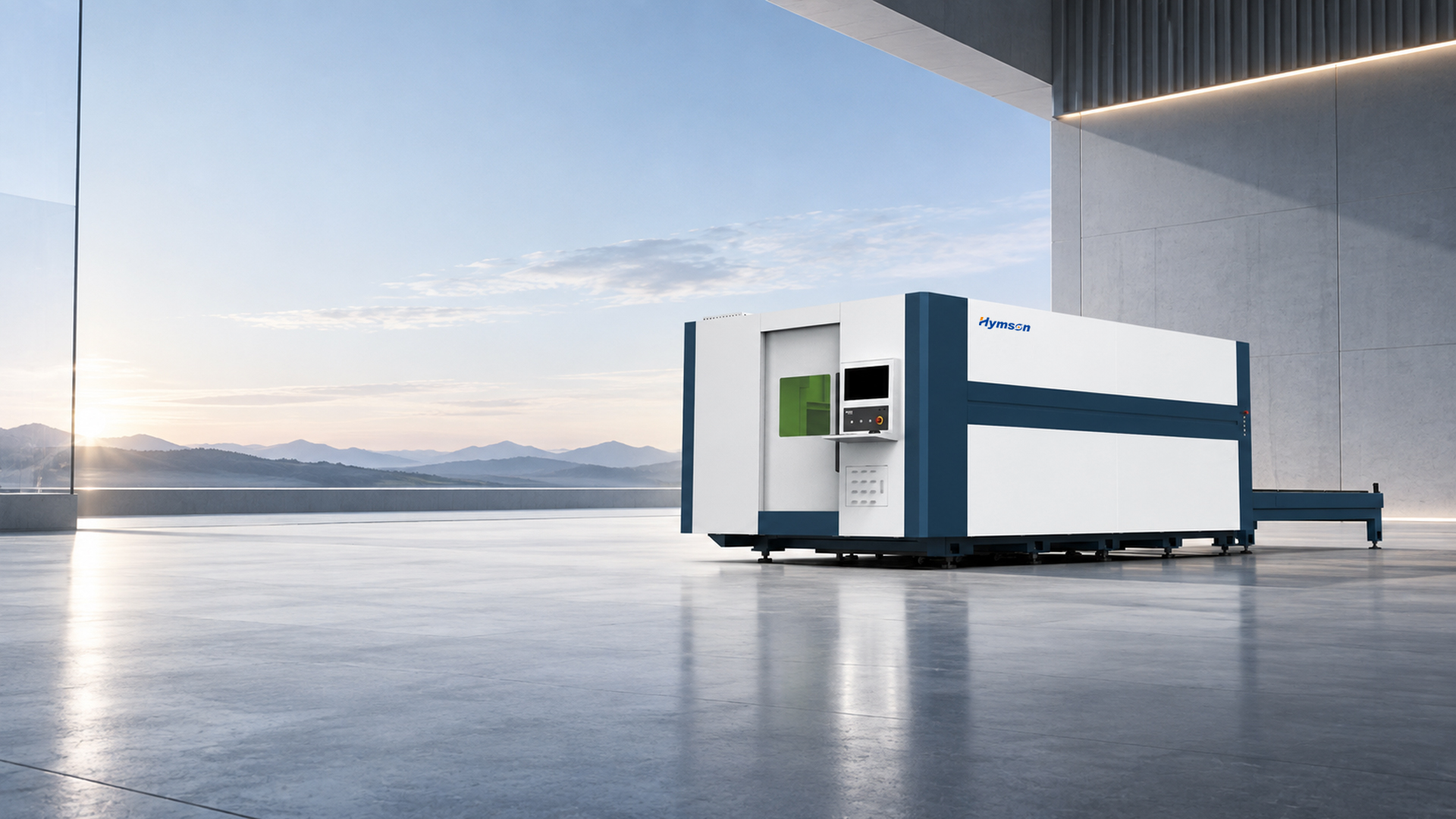

HF-G-7X is designed for precision sheet metal processing, with thousands of machines already in production use. Its high-rigidity structure, high-dynamic motion system, and intelligent controls work together to deliver high-speed processing with consistent accuracy and stable performance for day-to-day production.

1.5 g
Stable Acceleration
±0.03 mm/m
Positioning Accuracy
3-20 kW
Laser Power
3216/4020/6316/6320/6326
Multiple Size

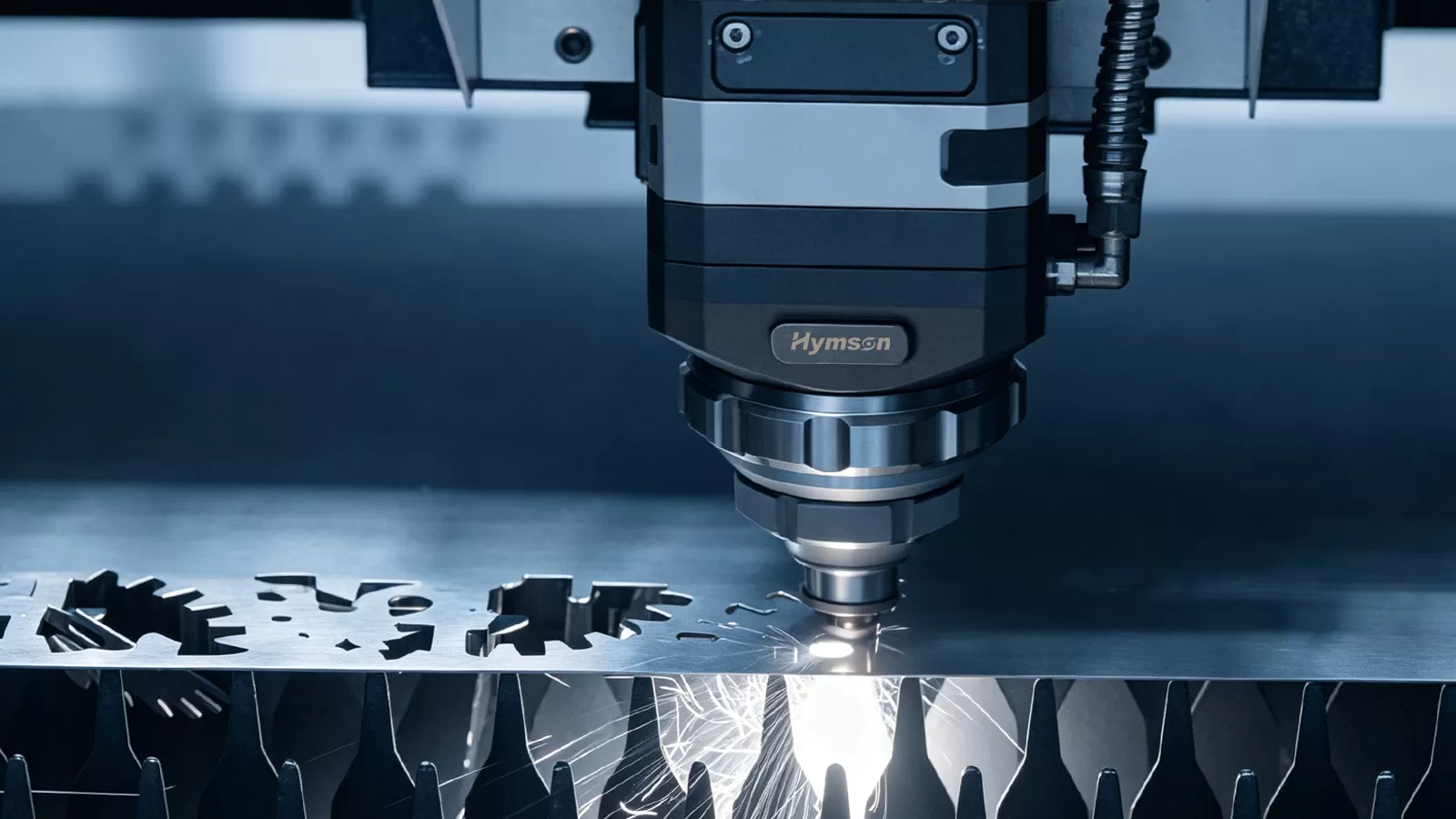

High-Rigidity Structure, Consistent Performance
01. High-Rigidity Structure, Consistent Performance
Precision Interlocking Bed | Multi-Point Support
The integrated precision interlocking heavy-duty bed and multi-point support enhance structural rigidity, reducing vibration and deformation during high-speed, high-load processing to maintain consistent cutting accuracy.
Efficient Extraction, Cleaner Operation
02. Efficient Extraction, Cleaner Operation
Negative Pressure | Enclosed Air Ducts | Zoned Extraction
A three-stage closed-loop extraction system combines negative pressure, enclosed air ducts, and intelligent zoned extraction to control dust dispersion and accumulation while reducing routine cleaning needs.
Intelligent Control, Reliable Operation
03. Intelligent Control, Reliable Operation
Smart Lubrication & Air Circuits | Collision Protection | Multiple Limits
Intelligent lubrication and air circuits, cutting head collision protection, and multiple software and hardware limits work together to support stable operation and reduce interruptions and maintenance needs.
Flexible Configuration, Easier Expansion
04. Flexible Configuration, Easier Expansion
Standalone Storage | Multi-Machine Integration | Flexible Automation
Standalone storage, multi-machine integration, and flexible automated production lines can be configured according to material handling, production cycle, and capacity requirements, supporting expansion from standalone processing to automated production.

Use Cases

01.
General Sheet Metal
Machine parts, sheet metal structures, metal enclosures, custom sheet metal parts
02.
Electrical Cabinets
Electrical cabinets, control cabinets, distribution cabinets, equipment enclosures
03.
Kitchenware & Hardware
Kitchenware, cabinets, bathroom hardware, stainless steel products
04.
Elevators
Elevator cabins, doors, panels, structural components
05.
Electrical Manufacturing
Electrical enclosures, mounting plates, control panels, structural components
06.
Customized Metal Fabrication
Custom parts, complex-shaped sheet metal parts, small-batch components, non-standard structures

Cutting capacity

Material 3 kW 6 kW 12 kW 20 kW
Carbon Steel 12 mm 25 mm 30 mm 40 mm
Stainless Steel 12 mm 25 mm 40 mm 8 mm
Brass 6 mm 10 mm

Workpiece

View More

Technical Specifications

Model

HF-G-7X-3216

HF-G-7X-4020

HF-G-7X-6316

HF-G-7X-6320

HF-G-7X-6326

Max. Working Area

3200 * 1600 mm

4000 * 2000 mm

6300 * 1600 mm

6300 * 2000 mm

6300 * 2600 mm

X&Y Axis Max. Linkage Speed

140 m/min

140 m/min

140 m/min

140 m/min

140 m/min

Max. Stable X-Y Axis Acceleration

1.5 g

1.5 g

1.5 g

1.5 g

1.5 g

X-Y Axis Positioning Accuracy

±0.03 mm/m

±0.03 mm/m

±0.03 mm/m

±0.03 mm/m

±0.03 mm/m

Z Axis Travel

250 mm

250 mm

250 mm

250 mm

250 mm

Machine Overall Dimensions

8700 * 2800 * 2200 mm

10800 * 3350 * 2300 mm

15600 * 3000 * 2350 mm

15600 * 3500 * 2350 mm

15700 * 4020 * 2350 mm
